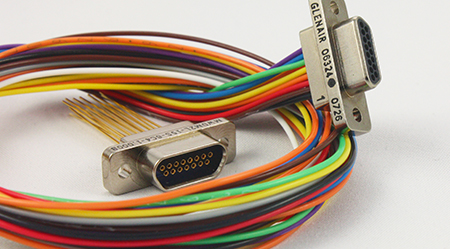

Glenair MIL-DTL-83513 Micro-D Connectors

Aluminum alloy 6061 in accordance with SAE-AMS-QQ-A-250/11

Plating Code C: Cadmium with yellow chromate conversion coating in accordance with SAE-AMS-QQ-P-416, Type II, Class 3

Plating Code N: Electroless nickel in accordance with SAE-AMS-26074, Class 3

Plating Code P: Stainless-steel, 300 series, passivated in accordance with SAE-AMS-QQ-P-35

Plating Code A: Pure electrodeposited aluminum in accordance with MIL-DTL-83488, type II

Plating Code K: Zinc nickel in accordance with ASTM B841 over a suitable underplate

Plating Code T: Nickel fluorocarbon polymer, high phosphate nickel with flourocarbon polymer additive over a suitable underplate

Liquid crystal polymer, 30% glass-filled or polyphenyl sulfide, 40% glass-filled, in accordance with MIL-M-24519

Liquid crystal polymer, 30% glass-filled or polyphenyl sulfide, 40% glass-filled, in accordance with MIL-M-24519

Liquid crystal polymer, 30% glass-filled or polyphenyl sulfide, 40% glass-filled, in accordance with MIL-M-24519

Fluorosilicone rubber in accordance with A-A-59588

Beryllium copper, gold-plated in accordance with ASTM B 488 Type II Class 1.27 (50 Microinches minimum) Code C, over nickel underplate in accordance with SAE-AMS-QQ-N-290, Class 2 (30 microinches minimum)

Phos bronze in accordance with ASTM 139 gold-plated in accordance with ASTM B 488 Type II Class 1.27 (50 Microinches minimum) Code C, over nickel underplate in accordance with SAE-AMS-QQ-N-290, Class 2 (30 microinches minimum)

Epoxy resin, hysol EE4215/HD3561

Stainless-steel, passivated in accordance with SAE-AMS-2700

MIL-W-22759/11: 19 strand silver-coated copper wire, extruded ptfe insulation, 600 volts rms, 200° C. MIL-W-22759/33: 19 strand high-strength silver-coated copper alloy wire, crosslinked modified ETFE insulation, 600 volts rms, 200° C.

Wire type 07 and 08: solid copper wire in accordance with A-A-59551, tin/lead plated wire type 05 and 06: solid copper wire in accordance with A-A-59551, gold-plated
